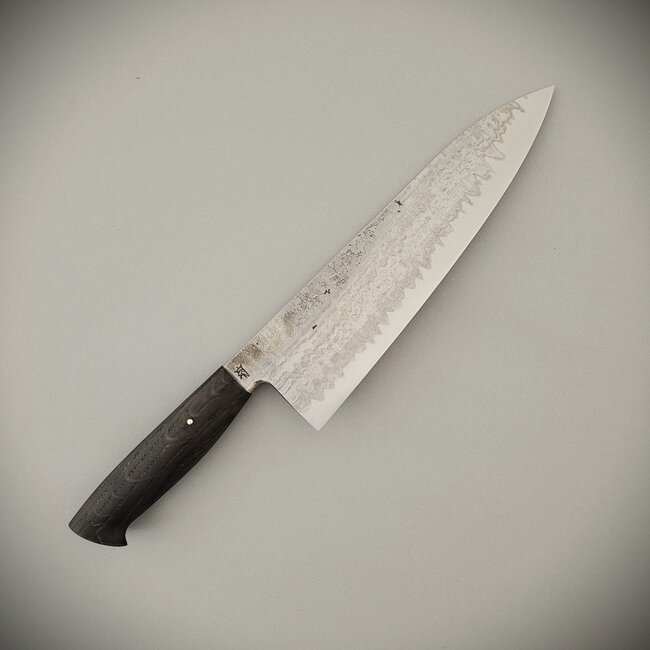

21 cm Workhorse "TNT666"

21 cm Workhorse "TNT666"
€0,00
* Incl. tax Excl. Shipping costs

A 21 cm workhorse with a handle made of medieval oak and a blade made of TNT666 and puddle iron. Read more..

0

The cutting edge of this 21 cm workhorse is made of the special alloy TNT666 with a hardness of 65 hrc. The side layers consist of additionally refined historical puddle iron. The blade was ground slightly convex. The knife has good cutting properties. There is a strong wedge effect in the choil area, while the grind becomes increasingly pointed and more performant towards the tip. The blade has a clear taper, but is not laser-thin towards the tip. The higher weight of the blade in combination with the light handle wood supports the cut. A real workhorse. The profile is suitable for all cutting techniques.

The cutting layer consists of a special melt that was produced exclusively for Achim Wirtz (steel dealer and producer). Several years ago, Achim Wirtz had a small amount (approx. 80 kg) of this steel produced as a test melt as part of a university project. Since then, a few blades made of this material have appeared sporadically. Now there is a new edition of the previous test melt, but this time too only 400kg of steel were produced. So it remains a highly exclusive material.

The TNT666 is an extremely wear-resistant medium-alloy tool steel with a high achievable hardness, whose wear resistance can easily keep up with that of 1.2562. The steel forms extremely hard titanium-niobium and tungsten-chromium mixed carbides. At the same time, the total content of carbides is still low enough so that fine cutting edges are also possible. A rare material with very good properties.

The western handle is made of medieval oak with a nickel silver pin.

A quick note: Apart from PM steels, all of the cutting steels I use are additionally refined during the forging process to ensure the most homogeneous distribution of alloying elements possible. The flat material is precisely ground flat and stacked into packages with a height of at least 60mm. These packages are then fire-welded and forged in the absence of air. The resulting flat steel forms the starting material for San-Mai constructions or mono-steel blades.

For deliveries to non-EU countries, the 19% German VAT is automatically deducted from both the goods and the shipping costs when ordering. The buyer is responsible for any import or customs fees. It often happens that customs authorities want to contact the buyer by telephone. It is therefore absolutely necessary to provide the correct telephone number when ordering. If the buyer cannot be reached, the order will be returned to me at a cost and the buyer must cover the resulting costs.

Lenght of edge:

215mm

Max. height of the blade:

60mm

Thickness of the blade:


Tang:

6,6mm

Coil:

5,3mm

Middle:

3,0mm

20mm before the tip:

1,1mm

Lenght of the handle:

113mm

Weight:

230g

Balancepoint:

approx. 40 mm before the handle

Geometry:

userfriendly

Flatspot:

no flatspot

Core steel:

TNT666 (1.2443):

C = 1,21 %
P <= 0,01 %
S <= 0,01 %
Si = 0,26 %
Mn = 0,29 %
Cr = 0,27 %
W = 0,62 %
Ti = 0,59 %
Nb = 0,61 %

~65hrc
Intermediate layer:

nickel

Clad:

puddle iron

Material of the handle:

medieval oak from a well wall, nickel silver

Shape of the handle: western
